| Hopper dimension : | 1390mm X 3500mm X Height 2000mm |
|---|---|
| Feed opening dimension : | 1100mm X 1150mm X 2100mm |
| Packaged product dimension : | 1100mm X 1150mm X 2000mm |
| Generators used : | 50HP X 1 ﹐ 3HP X 1 ﹐ 2HP X 1 |

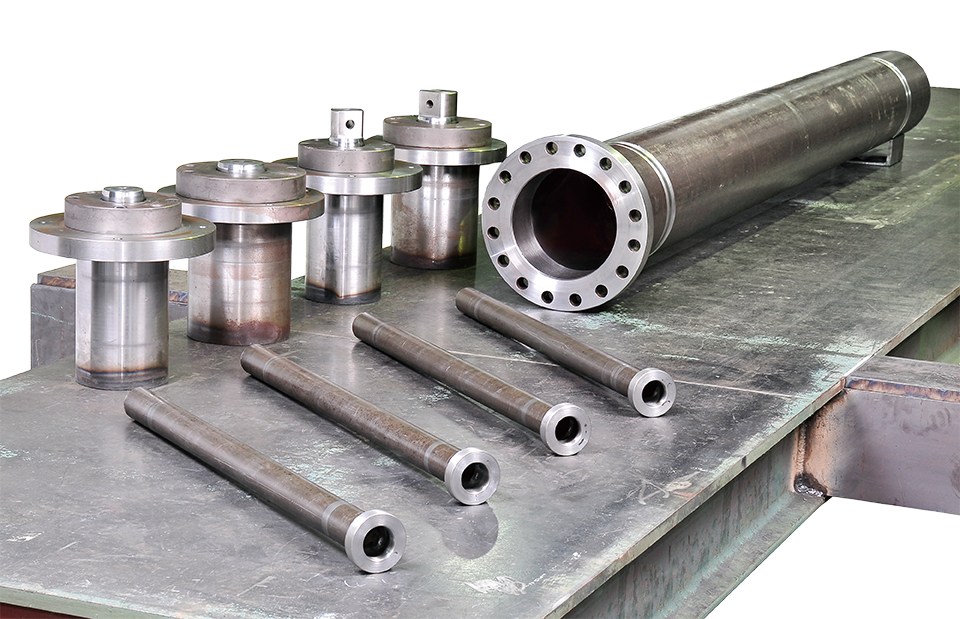

| Primary hydraulic cylinder : | 250mm X 200mm X Length 3000mm |
| Maximum unit surface pressure : | 8.27kgs ／c㎡ |
| Pressing Force : | 103 tons （Max.pressure :210kg ／c㎡ ） |
| Primary hydraulic cylinder moving speed : | Forward 189mm /sec. Backward 336mm /sec. (no load) |
| Single cycle time : | Back and forth once 22 seconds (no load) |
| Clamp hydraulic cylinder : | 150mm X 80mm X 150mm Two stage adjustable Two units |
| Compressing and bundling time : | About 35 ～ 40 seconds with a utomatic threading and knotting |
| Compressing and bundling steel wire : | 5 bundles (provided by user) |
| Compressing and bundling steel wire type : | Small steel coil, standard equipment |
| Large wire rack and wire wheel equipment : | ( Optional equipment ) |
| Body material : | SS41 China Steel A grade iron plate |
| Machine weight : | 22000kgs |
| Fuel tank capacity : | AW68＃1000 liter |
